Description

This mounting option is recommended for situations when you need free-standing lattice.

Assembly Instructions:

Lattice frame: Use the open connectors and lattice rods to assemble the frame. The kit assumes a lattice spacing of 1-foot and a border on the sides and top. Spacing may vary depending on your application. Rods may be cut for fit as necessary.

Mounting: After assembling the lattice frame attach vertical base plates to the bottom of the vertical rods. There should be an equal number of remaining 2-foot rods, swivel baseplates and open connectors. Connect an open connector to one end of the 2-foot rod and a swivel base plate to the other end. Attach the open connector to the lattice frame 30-45 degrees. Base plates may be secured with #10 screws. Mounting Screws Not Included.

NOTE: Follow your fume hood manufacturers’ requirements for attachment.

4 foot Kit Includes:

(4) 1/2″ X 36″ Aluminum Rods
(3) 1/2″ X 38″ Aluminum Rods
(14) L2A-1 Connectors

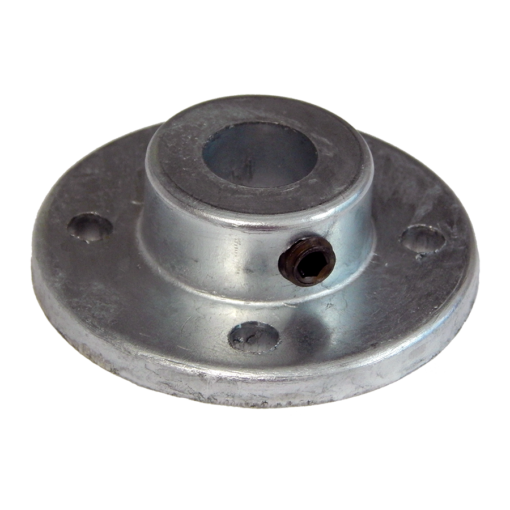

(4) L8A-1 Vertical Base Plates
(2) 1/2″ X 24″ Aluminum Rods
(2) L10A-1 Swivel Base Plates
(1) Assembly Instructions

6 foot Kit Includes:

(6) 1/2″ X 36″ Aluminum Rods
(3) 1/2″ X 62″ Aluminum Rods
(21) L2A-1 Connectors
(6) L8A-1 Vertical Base Plates
(3) 1/2″ X 24″ Aluminum Rods
(3) L10A-1 Swivel Base Plates
(1) Assembly Instructions

8 foot Kit Includes:

(8) 1/2″ X 36″ Aluminum Rods
(3) 1/2″ X 86″ Aluminum Rods
(28) L2A-1 Connectors
(8) L8A-1 Vertical Base Plates
(4) 1/2″ X 24″ Aluminum Rods
(4) L10A-1 Swivel Base Plates
(1) Assembly Instructions
