Description

What is it good for?

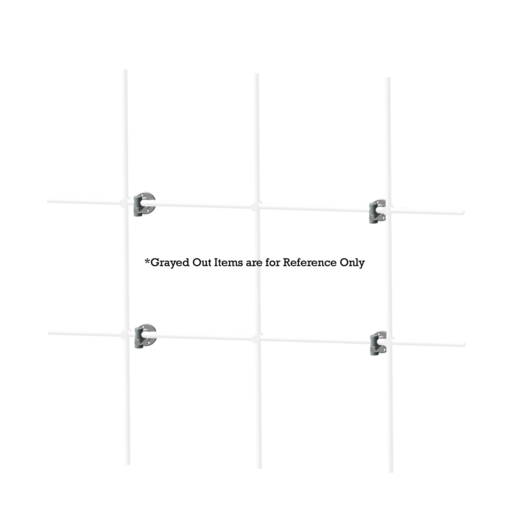

This mounting option is great for situations when you need a lab support lattice to cover the entire back panel of your fume hood.

Assembly: Refer to Fume Hood Manufacturer recommendations for Recommended Installation.

• Use #10 screws (Screws not Included) to attach all four SL8A-1 bases to the back of your fume hood or wall (we installed ours about 1 foot apart vertically and 1 foot apart horizontally).
• Use the hex key to attach the four 4” rods to each connector.
• Use the hex key to attach the four SL2A-1 connectors to the lattice rods on the support grid.
• Place the 4″ rods in each SL8A-1 Base Plate and tighten with the hex key.

4′ Kit Includes:

(4) 4” Stainless Steel Rods
(4) SL2A-1 Connectors
(4) SL8A-1 Base Plates

6′ Kit Includes:

(6) 4” Stainless Steel Rods
(6) SL2A-1 Connectors
(6) SL8A-1 Base Plates

8′ Kit Includes:

(8) 4” Stainless Steel Rods
(8) SL2A-1 Connectors
(8) SL8A-1 Base Plates
