Fiberglass Fume Hood Back Mounting Kit

Description

What is it good for?

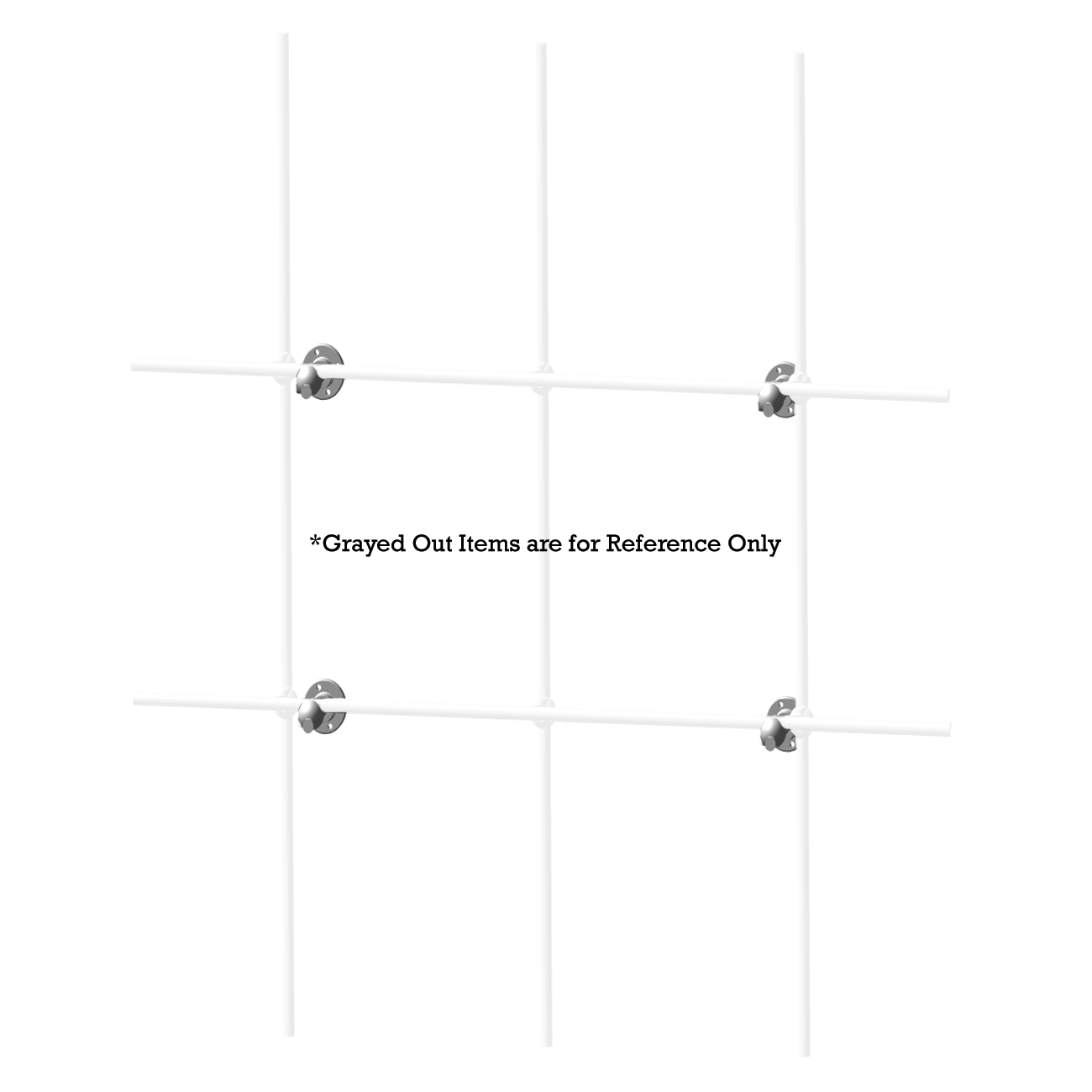

This mounting option is great for situations when you need a lab support lattice to cover the entire back panel of your fume hood.

Assembly: Refer to Fume Hood Manufacturer recommendations for Recommended Installation.

• Use #10 screws (Screws not included) to attach all four PL8A-1 bases to the back of your fume hood or wall (we installed ours about 1 foot apart vertically and 1 foot apart horizontally).
• Use the hex key to attach the four 4” rods to each connector.
• Attach the four PL2A-1 connectors to the lattice rods on the support grid.
• Place the 4″ rods in each PL8A-1 Base Plate and tighten with the hex key.

4′ Kit Includes:

(4) 4” Fiberglass Rods
(4) PL2A-1C Connectors

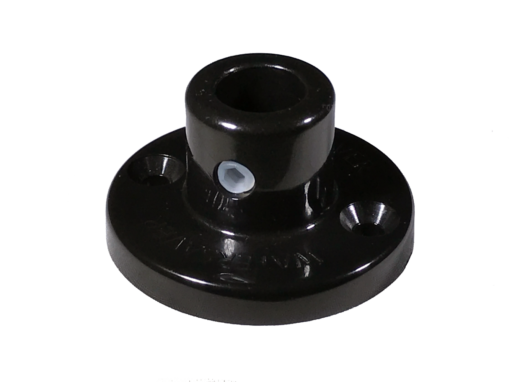

(4) PL8A-1 Base Plates

6′ Kit Includes:

(6) 4” Fiberglass Rods
(6) PL2A-1C Connectors
(6) PL8A-1 Base Plates

8′ Kit Includes:

(8) 4” Fiberglass Rods
(8) PL2A-1C Connectors
(8) PL8A-1 Base Plates
